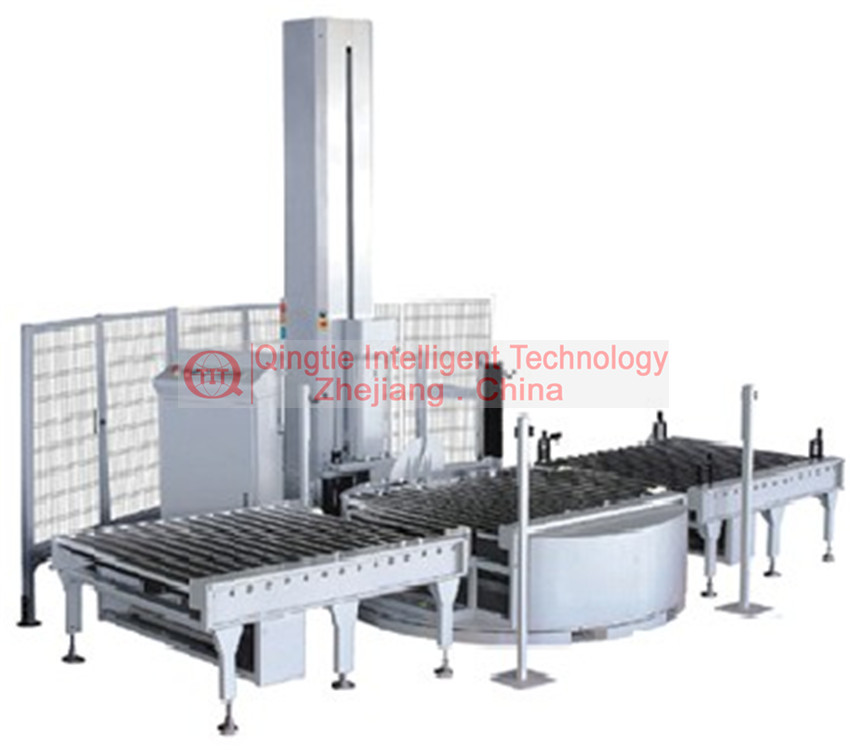

Product Description:

Main Parameters:

Wrap specifications: L (800-1400) mm * W (800-1300) mm
Packing height: 2000mm (can be customized)
Packaging efficiency: 30-50 Torr / hour
Turntable speed: 0~11 rpm speed variable frequency adjustable, turntable slow start slow stop
Turntable size: Φ2000mm (can be customized)
Table height: ≥450 mm (roller type)
Turntable load: 2000kg
Formwork system: side-mounted formwork, automatic film feeding
Motor power: turntable 0.75kw, mold base 0.37kw, column 0.37kw
Packaging material: width ≤ 500 mm, outer diameter ≤ Φ280 mm LLDPE stretch film
Machine weight: 600kg
Dimensions: 2895mm × 2000mm × 2280mm

Optional Accessories:

1. Power conveying roller,
2. The sticking mechanism,
3. Safety guardrail,
4. Protective grating.

Main performance:

Suitable for connecting unmanned packaging systems, automatic film and film break, soft start / soft stop,
1. Lifting column: double-chain structure, adjustable speed of lifting and lowering.
2. Formwork system: Pre-stretched film frame, pre-stretching up to 250%, automatic film feeding, DC speed control system, film frame side loading meets European and American safety requirements.
3. Control system: PLC programmable control, adjustable number of winding layers, adjustable number of times, adjustable frequency of lifting speed, turntable characteristics: slewing support, stable operation, high efficiency and reliability, long service life and no failure
4. Operation function: button-type operation panel, can automatically run with the main control communication, automatically input goods, automatically complete the machine setting function, automatic output
Automatically sense the height of the cargo and the photoelectric shielding function, the turntable automatically resets
With manual reinforcement winding function, the winding method and frequency can be designed as needed.
5. Conveyor system: roller conveyor
Conveyor line height: 560mm,
Conveying line speed: 15m/min,
Conveyor line load: 2000kg
Conveyor motor: 750W
The front and rear conveyor lines of the packaging machine are additionally customized
