Product Introduction:

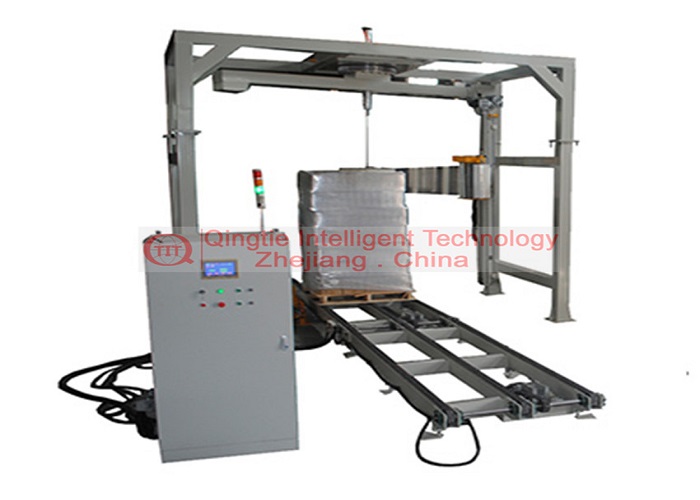

R1800-FM cantilever online winding packaging machine is mainly suitable for modern operation with large production volume and high logistics efficiency, meeting lighter or heavier packaging requirements, and can customize personalized packaging system according to different products and actual needs of the site. Automatically complete the whole process of sensing, packaging, centering and conveying of goods. The conveyor can adopt different forms such as rollers, belts and chain plates. The automatic film breaking machine can realize unmanned operation. R1800-FM cantilever online winding packaging machine is widely used in food, beverage, chemical, paper, building materials and other industries.

Main Parameters:

1. Cantilever system: cantilever automatic reset, high sensitivity emergency braking system;

2. Membrane frame system: pre-stretched membrane frame, pre-stretching up to 250%, automatic film feeding, adjustable film feeding speed;

3. Automatic upper film breaking device: automatic clamping, cutting stretch film for unmanned operation

4. Lifting column: double chain structure, adjustable speed of lifting and lowering;

5. Conveying system:

Conveyor line height: 400mm,

Conveying line speed: 15m/min,
Conveyor line load: 1500kg;

6. Control system: PLC control, adjustable number of winding layers, times, automatic sensing of cargo height;

7. Safety protection: eye-catching flash safety warning and protective net (optional), photoelectric protection of incoming and outgoing goods (conveyor line);

8. Equipment composition: cantilever wrapping machine + four-corner gantry bracket + 4m power transmission line + automatic upper film;

9. Packaging material:

LLDPE stretch film ( Width ≤ 500 mm,Outer diameter ≤ Φ280 mm )

Feature:

Soft start / soft stop, automatic reset, automatic height measurement soft start / soft stop, PLC control,
Automatic reset, automatic height measurement, reliable performance, easy operation, can be designed according to needs
Winding method and frequency, suitable for heavy-duty pallets, can be customized with a winding machine.
Also provides a complete packaging system conveyor line

Pallet Stretch Wrappers are available in many configurations including low profile pallet wrappers, high profile stretch wrappers, overhead swing arm pallet wrapping machines, and a variety of pallet wrapping tools. But stretch wrapping equipment is also available for many other tasks such as bundling products such as motors to pallets, tire wrapping, door and window wrapping, cabinets and many other applications.
