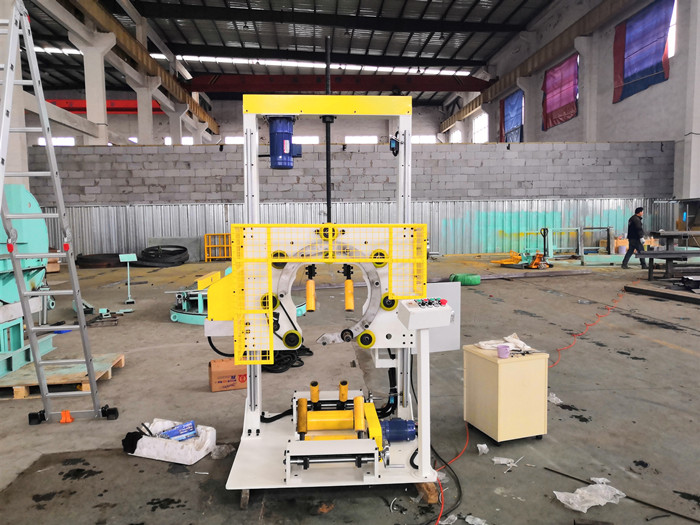

Simple Vertical Coil Wrapping Machine With PLC Programmable Controller

Coil Wrapping Machine Feature:

1. Simple operation, random display of automatic working status, with the function of displaying fault content.
2. Controlled by PLC programmable controller.
3. Touch type man-machine interface display: input the outer diameter, inner diameter and width of the product, and the microcomputer system automatically sets the winding package length and number of turns.
4. Humanized structure, standardized, modular design, to ensure safe use, easy operation, stable performance, easy maintenance.
5. Redundant design, large adjustment space, the main board can be moved on the board to accommodate different inner and outer diameter products.
6. Stable tension control mechanism.
7. The slip ring is integrally cast, the texture is even and firm, the precision is reset, and the slow start and slow stop, the packaging ends, and the automatic positioning.
8. The tow roller that is in contact with the surface of the product, the protective roller is coated with high anti-wear polyurethane, which is durable and effectively protects the product.
9. Using three-color warning lights, red light alarm, green light work, yellow light standby.

Coil Wrapping Machine specifications

The standard configuration is listed below. For other configurations, please contact our sales representative.

The machine should be installed on a flat, hard floor with a load of more than 1 ton / square meter.

Coil Wrapping Machine Packaging process:

A. Pipe from the extruder/spool through the tensioner and counter

B. Automatically send the pipeline to the take-up station.

C. The pipe head is clamped and rotated for winding

D. Automatic layering and coil making.

E. The pipe is automatically cut when the pipe length reaches the set value.

F. Automatic film feeding and packaging.

G. Packaging completed and cut the movie

H. Introduce the wound coil.

Basic features of Vertical Coil Wrapping Machine

1. The parameters can be set in the PLC program.
2. Calculate the length of the pipe and automatically cut the pipe.
3. Automatic winding system.
4. Automatic alarm system when a fault occurs.
5. The position of the pipe is automatically detected by the sensor.
6. The speed can be adjusted by the frequency converter.
7. Pipe feeders are used with automatic displacers.
8. Winding the pipe coil in an orderly manner.
9. The pneumatic pusher discharges the tube coil.
10. Hydraulic cutting machine for cutting powerful pipes

Coil Wrapping Machine Technical data:
