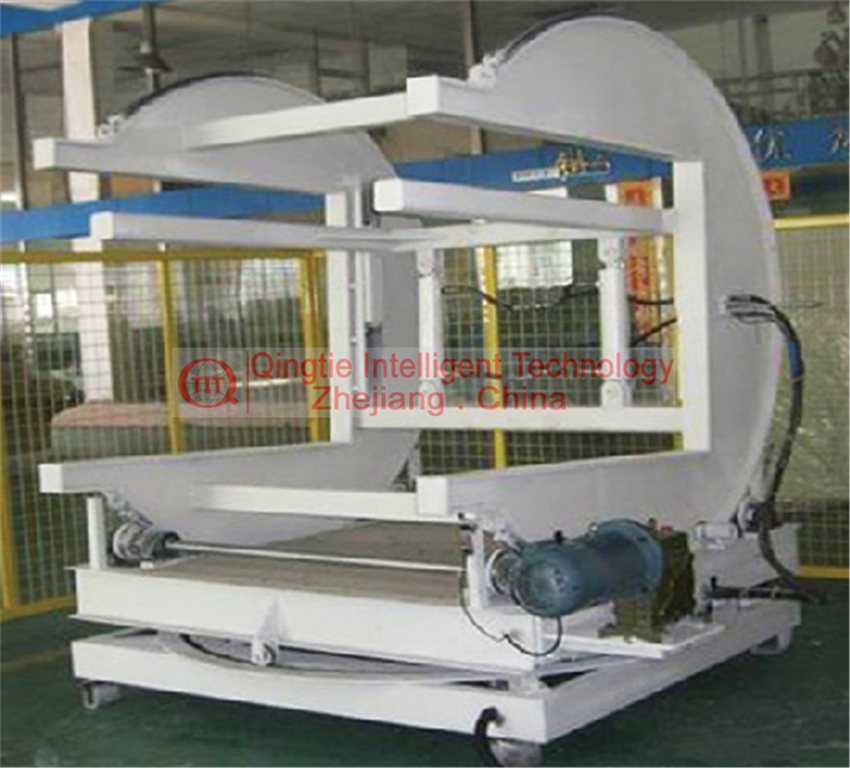

CFB01 180° C Type Automatic Turnover Machine

Applications:

Widely used in metallurgy, stamping, sheet metal, steel, copper, aluminum, door panels and other industries. The turning machine avoids the safety hazard caused by the forklift or the crane flipping, and improves the work efficiency, ensuring the best choice for workers' safety.

Competitive Advantages:

The utility model has the advantages that the safety hazard caused by the manual or forklift or the tilting of the crane is completely replaced, the speed is fast, the efficiency is high, the operation is convenient, the production efficiency is greatly improved, the labor intensity of the worker and the utilization rate of the factory driving are reduced. It is a very simple and functional transshipment conversion device. Guaranteed production safety. The three-dimensional process of conveying goods does not require high conveying rate characteristics such as manual and hanging cranes. The turning machine has simple structure, low cost, high work efficiency, safety and reliability.

Parameter:

Bearing weight : ≤15T
Material Specifications Length: Max 6000 mm; Min 800 mm
Width: Max 3000 mm,Min 400 mm
Thickness: Max 800 mm,Min 50 mm
Thickness of the loading and unloading frame: about 200 mm

Height of the sheet : ≤600mm
Thickness of the polyurethane cushion cushion between the sheet and the rack:20 mm ,or the surface of the rack is finished.
Structure "C" frame type, opening ≧1200mm
Working beats Flip speed: 100S/180°
Plate clamping speed: 50 mm / s
Plate release speed: 60 mm / s
Overall cycle time: ≤200 s
Loading and unloading method Crane or forklift (single side) loading and unloading
Main drive motor + reducer
Fixed method Equipment shallow foundation or no foundation

Product Description:

This machine is mainly composed of inverted body, feeding device, material clamping mechanism, control pipeline, hydraulic system, electrical console, operating system, safety fence, etc. It can adapt to the engineering turning requirements of different specifications of goods, safe and stable. Efficiently provide process delivery to achieve the goal of converting the front side to the reverse side or the reverse side to the front side. Simply place it in the foundation or on the level ground.

The operation process is simple and convenient:

Move the product into the flip positioner with a forklift or a forklift, start the button on the operation panel, turn the positioner to start flipping the position, and then shift the product after the product has been rotated 180°.

Main effect:

“C” type plate turning positioner is a special equipment produced by the automobile industry. It is used for the reversal of large-scale sheet metal tanning. It is an auxiliary equipment necessary for the stamping automatic production line, which can not only reduce the surface scratch of the sheet material, but also improve the product. Quality, while reducing the labor intensity of the operator and improving production efficiency.
The main features of this type of equipment are reflected in the maturity of the product structure and no maintenance accidents.

Working principle:

Firstly, it is designed to adapt to different workpiece dimensions and quality, and according to the structure of different workpieces, different workpiece fixing devices are designed. Secondly, during the turning process, the horizontal movement of the workpiece center of gravity is minimized; during the turning process, the workpiece remains stable and runs. The noise should be as small as possible to prevent noise pollution; minimize energy consumption and meet the requirements of energy saving and emission reduction; finally, it must meet the flip function of 0° to 180° and 180° to 0°.
